The E-Explorer 3.4 is an electric assist bike designed for daily use. Thanks to its versatile and progressive assistance, moving around has never been so simple. Fitted with mudguards and luggage rack, the E-Explorer makes your journey better.

Specifications

• Brake Lever: Shimano MT200
• Brakes Front: Shimano SMRT10 180mm Center Lock (Front), 160mm (Rear)
• Fork: SR Suntour NEX E-25 Tapered QR9x100 27,5" 63mm travel
• Frame: Overvolt Explorer Semi Integrated Bosch
• Handlebar: Lapierre alloy 6061DB, Width: 660mm, Rise: 26mm, Backsweep : 30°, Ø: 31.8mm
• Headset: VP-J303PES, Black Finish, 1.1/8"
• Model Year: 2022
• Pedals: VP VPE-461
• Shift Lever: Shimano Alivio SLM3100 with optical gear display, 9s
• Stem: Lapierre, 17°, Ø: 31.8mm, Length : 90mm
• Battery Watts per Hour: 400Wh
• Display: Purion
• E-Bike: Yes
• Motor: Bosch Active line "25kph" / External battery 400Wh / Purion display
• Grips: XLC Ergonomic grips
• Saddle: Selle Royal Lancia
• Seat Post: Lapierre Aluminium 6061 Ø: 31.6mm, Longueur : 350mm, Offset : 5mm
• Rim: Ryde ZAC421 32H, 584x21C
• Tyres: Continental Double Fighter III 50-584, 3x60EPI (27,5") (Front & Rear)
• Chain: KMC e9 Sport Silver-black 9s
• Crankset: LAPIERRE OVERVOLT BNI, 170mm + 38T Narrow Wide
• Front Wheel Hub: Shimano TX5058B, 9mm QR, 32H Centor Lock
• Rear Derailleur: Shimano Altus RD-M2000, 9s Shadow
• Rear Wheel Hub: Shimano TX5058B, 9mm QR, 32H Centor Lock
• Sprocket: Shimano HG200 9s 11–36T
• Accessories: "Front light : AXA Compactline 20, 20 Lux Rear Light : AXA Blueline 50mm Fenders : Eurofender Matt Black Carrier : Lapierre Aluminium MIK Ready 25Kg"

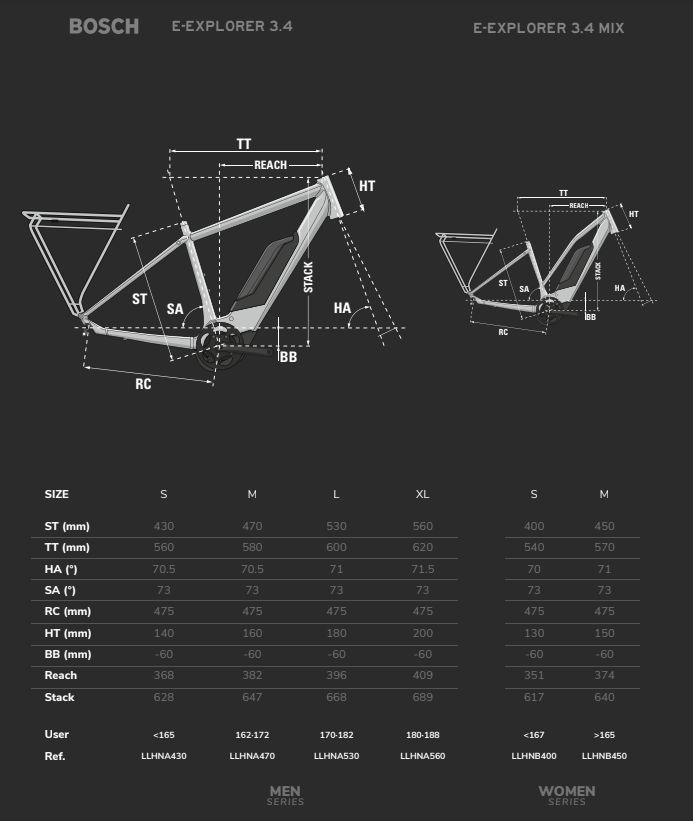

Geometry
